Broadcast Server Case for Matchday Data Systems

SP-1 designed and built a rugged matchday broadcast server case, integrating networking, power, cooling and protected laptop storage into 1 portable system for rapid pitch-side deployment.

Client

Sportable Technologies, delivering real-time sports data and broadcast graphics systems.

Objective

Develop a rugged, portable broadcast server case that could support matchday data processing, networking and live broadcast graphics from a single deployable system. The system needed to replace an existing broadcast box setup with a more robust, organised and field-ready platform for pitch-side use.

Challenge

Matchday broadcast workflows rely on reliable data processing, stable connectivity and fast setup in live environments.

The existing setup required separate compute, networking, power and storage elements, increasing setup time, cable management issues and the risk of missing or damaged equipment.

The case needed to bring the key system components together in 1 protected unit while supporting rapid deployment, active cooling, external connectivity and safe transport between venues.

Solution

SP-1 engineered Atlas as a fully integrated broadcast server and networking case for matchday deployment.

The system combines mechanical design, internal mounting, power distribution, laptop storage, active cooling and external connectivity inside a rugged transportable enclosure. It was designed to protect critical hardware in transit while allowing operators to set up quickly and run key equipment directly from the case.

Key features included:

Rugged transport case for pitch-side and venue-to-venue deployment

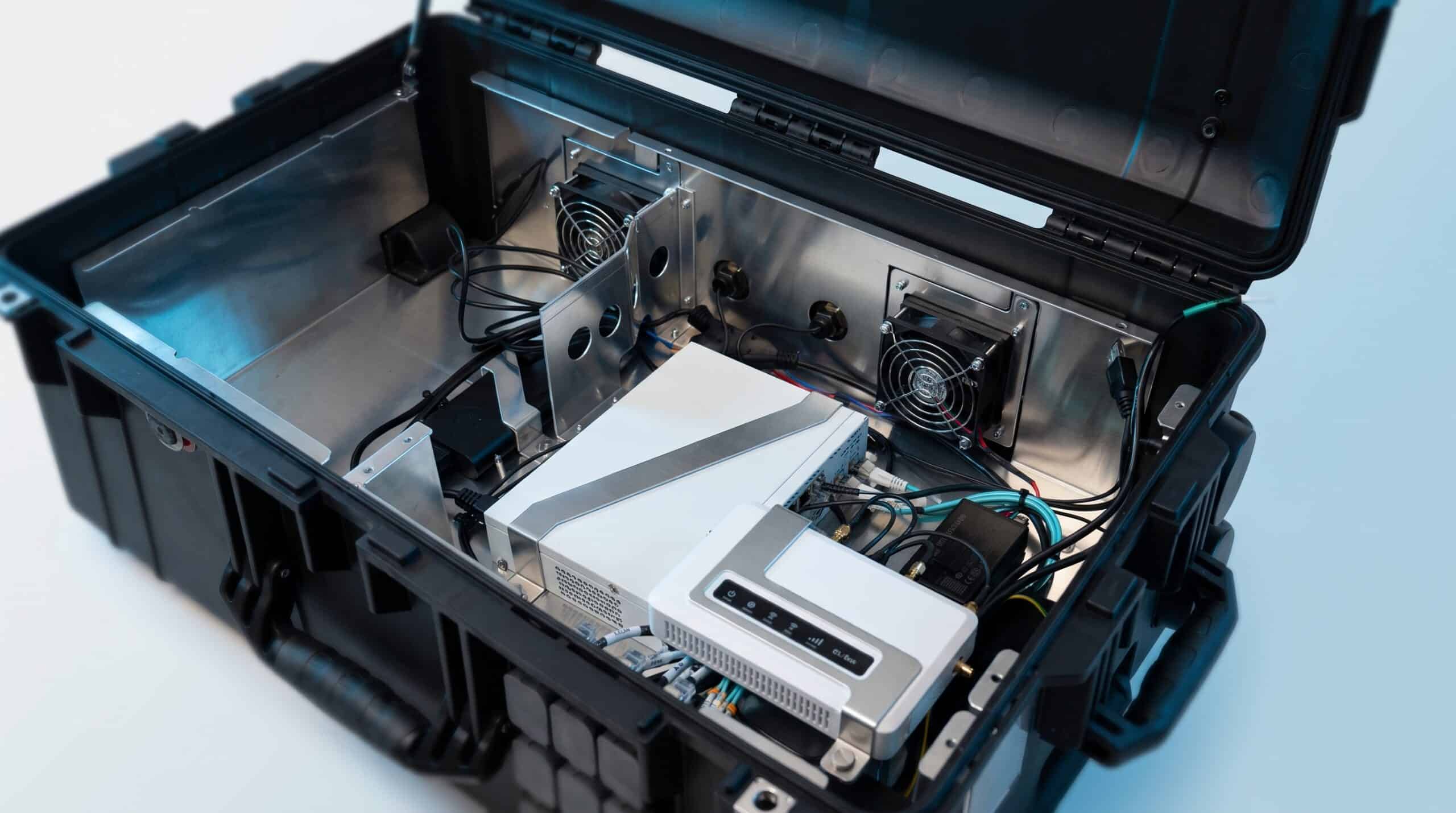

Integrated server, networking and power layout
Secure mounting for switch and router hardware

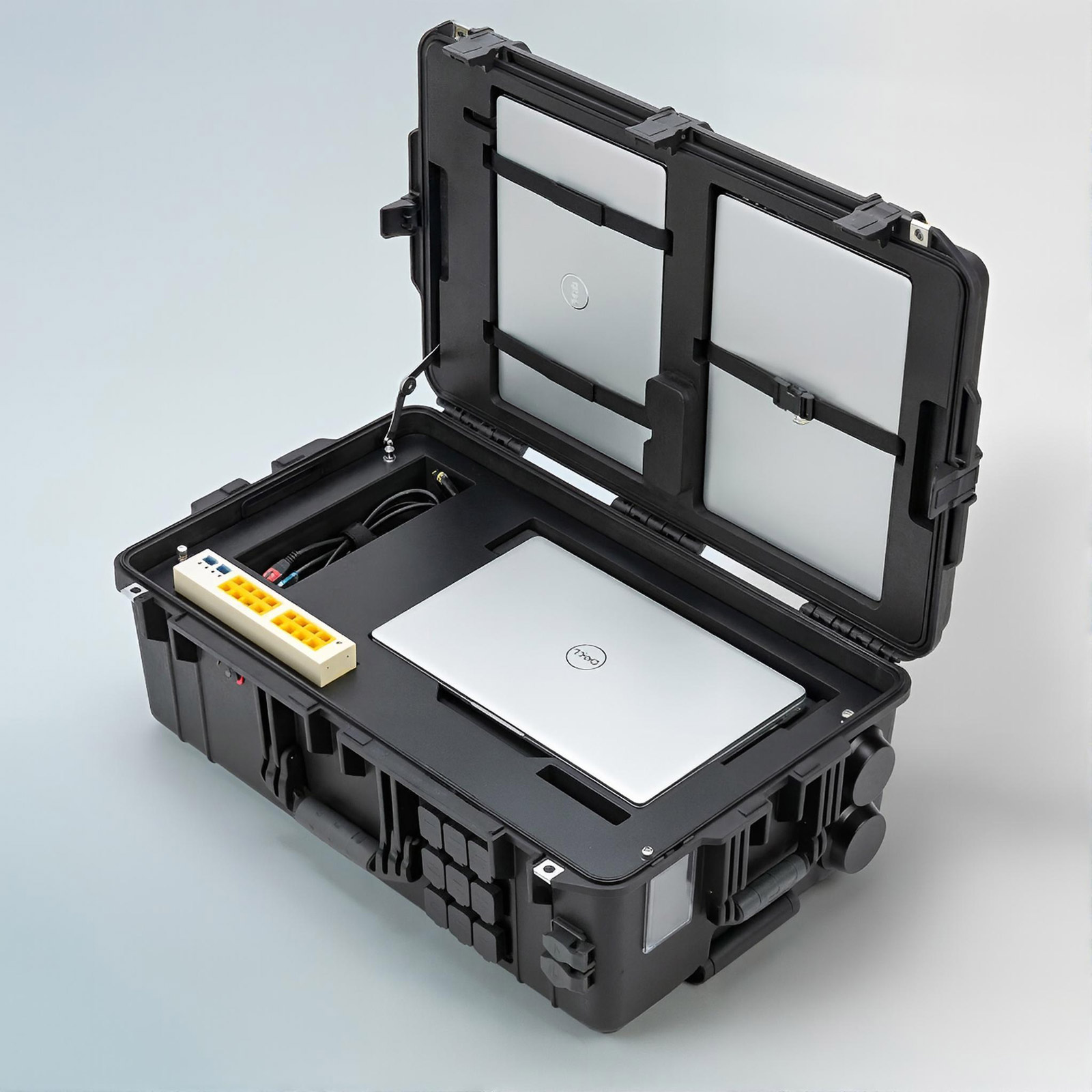

Storage for 3 laptops, laptop chargers, mice and external power cable
In-case laptop operation for rapid setup and live use

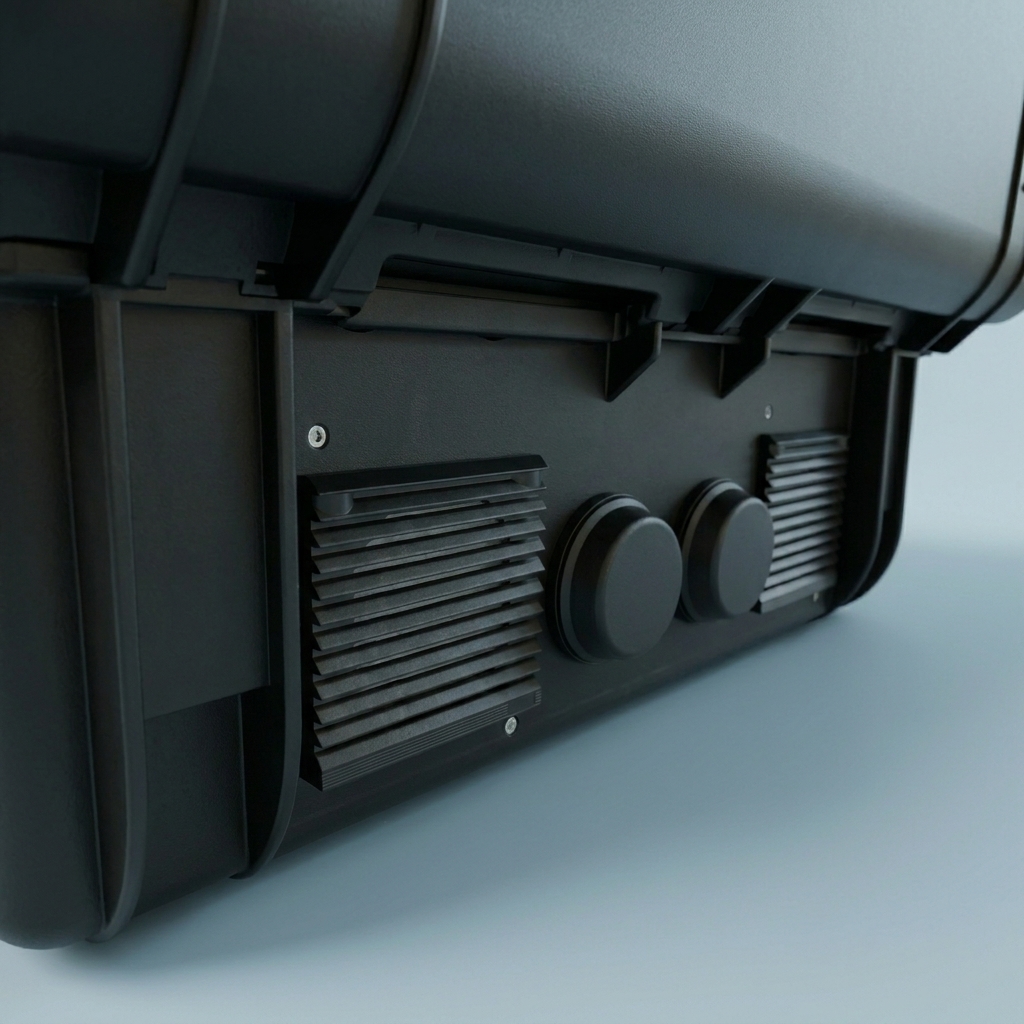

Active cooling to support operation while closed
IP54 protection when closed

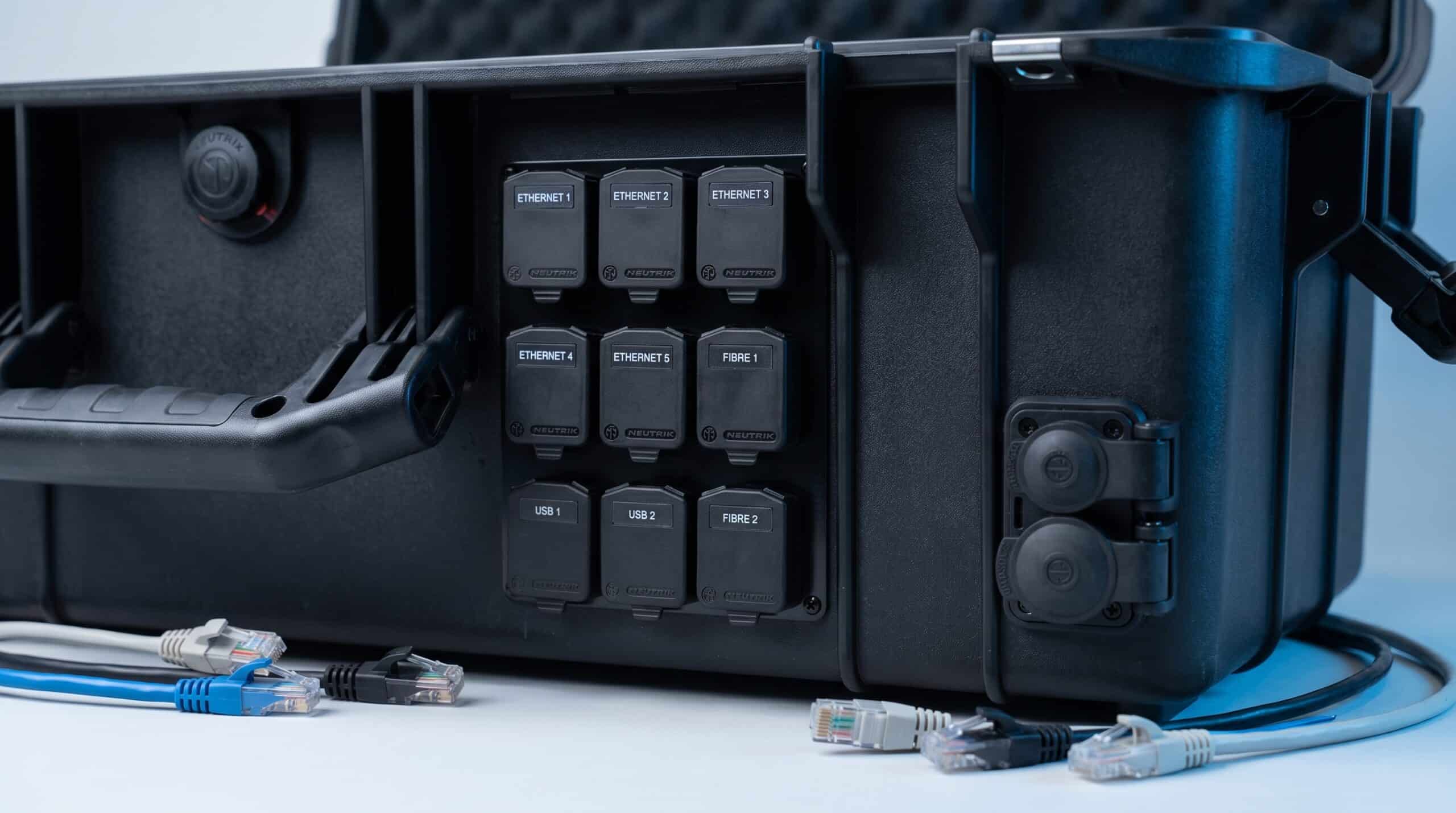

External Ethernet connectivity without opening the case
Grounded mains power inlet with locking IP65 connector
Internal power distribution
Safety protection with RCD and serviceable mains fuse
Wheels, telescopic handle and additional carry handles for transport
Compact design no larger than 630 x 390 x 300mm
Fully laden target weight under 16kg
Designed for reliable production and repeatable build quality

Outcome

The finished Atlas case gave Sportable a single, organised and repeatable system for transporting, protecting and deploying matchday broadcast equipment. By integrating compute, networking, power, cooling and storage into 1 rugged case, SP-1 reduced setup complexity and helped operators bring live data systems online quickly in demanding sports environments.

Project highlights

Client: Sportable Technologies
Application: Matchday broadcast data and graphics support
System type: Rugged broadcast server and networking case
Core functions: Transport, protection, networking, power, cooling and laptop operation
Protection: IP54 when closed
Cooling: Active cooling for closed-case operation
Storage: 3 laptops, chargers, mice and external power cable
Connectivity: External Ethernet, router and switch integration
