SP-1 Project
Instant WiFi Deployable Network Case
SP-1 designed and integrated a rugged Instant WiFi case for rapid emergency connectivity, combining 4G routing, firewall protection, PoE and deployable access points into 1 portable system.
Client
Vodafone Foundation, supporting emergency connectivity for disaster response, humanitarian aid and remote community deployments.
Objective
Develop a rugged, portable Instant WiFi system that could be deployed quickly to provide internet access in disaster areas, refugee camps and locations where existing communications infrastructure was damaged, overloaded or unavailable. The system needed to bring core networking, security, power and Wi-Fi hardware together in 1 transportable case, reducing setup time and making the kit practical for field deployment.
Challenge
Emergency response teams need communications infrastructure that can be transported easily, set up quickly and operated in unpredictable conditions.
The system had to support a wide-area Wi-Fi network while remaining simple to deploy, robust in use and flexible enough to operate from different power sources. It also needed to house multiple network components, access points, antenna connections and external ports without creating a complicated on-site setup process.
The case design needed to support:
- rapid deployment by non-specialist users
- 4G connectivity for emergency internet access
- secure firewall and network management hardware
- multiple deployable Wi-Fi access points
- external LAN and WAN connections
- Power over Ethernet for remote access points
- AC mains and 12V DC vehicle power
- thermal management for enclosed electronics
- rugged protection for transport and field use
Solution
SP-1 engineered the Instant WiFi case as a self-contained deployable connectivity hub.

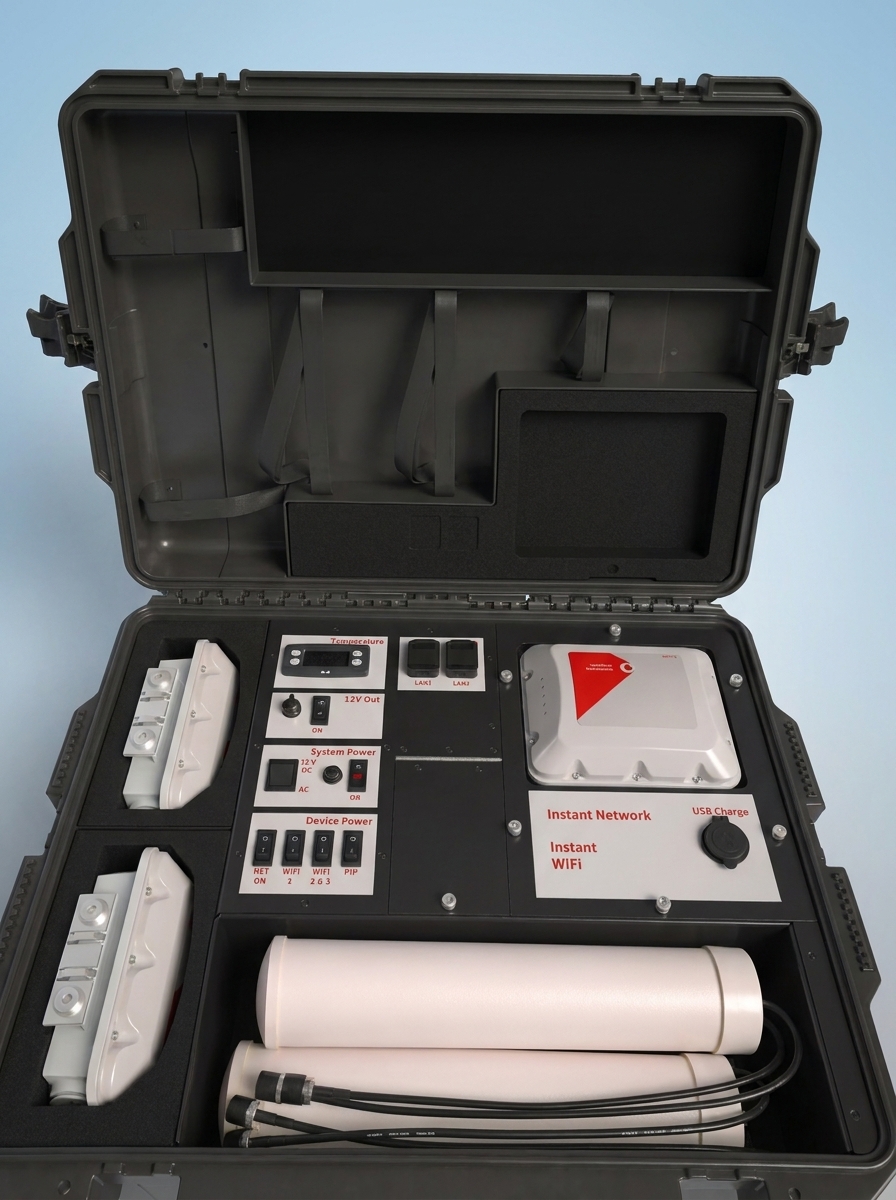

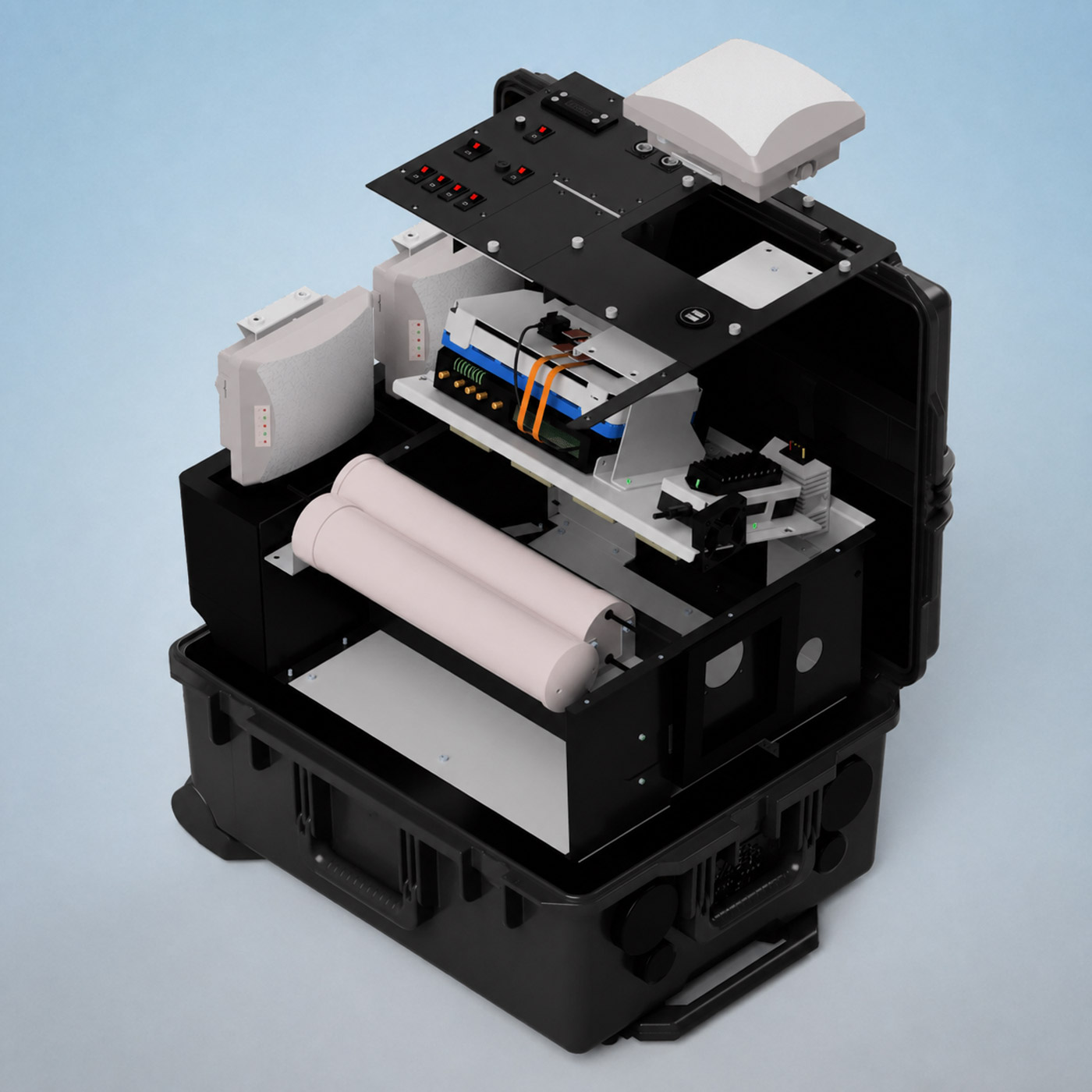

The system integrated 4G routing, firewall protection, power conversion, PoE distribution, antenna connectivity and 3 deployable Wi-Fi access points into a rugged portable enclosure. The internal layout was designed to keep hardware secure, serviceable and organised, while external ports allowed field teams to connect antennas, WAN links and access points without dismantling the case.
A dual-input power system allowed the unit to operate from standard AC mains or 12V DC vehicle power, helping maintain connectivity where grid power was unavailable. Integrated cooling and thermal protection supported operation in challenging conditions, while the case format kept the full system practical for transport and rapid deployment.
Key features included:
- rugged all-in-one Instant WiFi case
- integrated 4G router and firewall hardware
- support for 3 deployable Wi-Fi access points
- Power over Ethernet distribution for external access points
- AC mains and 12V DC vehicle power input
- external LAN and WAN connectivity
- external antenna connections
- removable antenna and access point storage
- internal power distribution and switching
- integrated cooling fans
- thermal cut-out protection for core electronics
- weather-resistant case design for field deployment
- organised internal mounting, wiring and cable management
- designed for rapid setup in emergency and remote environments
Outcome
The finished Instant WiFi system gave Vodafone Foundation a more integrated, portable and field-ready way to deploy emergency connectivity. By consolidating routing, firewall protection, power, PoE, antennas and access points into 1 rugged case, SP-1 reduced setup complexity and created a cleaner deployment workflow for disaster response, humanitarian aid and remote connectivity projects. The result was a practical all-in-one network platform that could be transported, powered and deployed quickly when communications infrastructure was unavailable or unreliable.
Project highlights
Client: Vodafone Foundation
Application: Emergency connectivity and deployable Wi-Fi
System type: Rugged Instant WiFi network case
Core functions: 4G routing, firewall protection, Wi-Fi access, PoE, power distribution and antenna connectivity
Connectivity: 4G, LAN, WAN and deployable Wi-Fi access points
Power: AC mains and 12V DC vehicle input
Deployment: Designed for disaster response, refugee camps and remote environments
SP-1 role: 3D design, enclosure integration, internal mounting, power layout, cabling and system build
